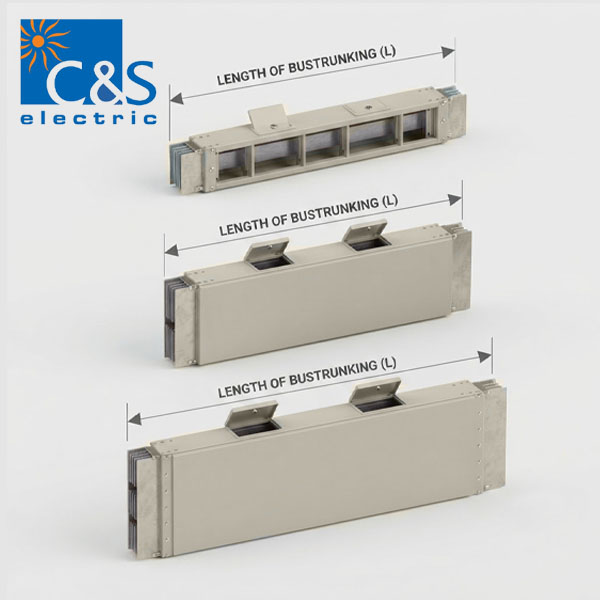

Staight Lenght With PIP
BDT 0.00
- Price : POA
- Conductor : Copper / Aluminium
- Current Rate : 630A – 7000A (Copper), 400A – 5000A (Aluminium)
- Voltage Rate : Up to 1000V AC
- Frequency : 50 / 60 Hz
- Protection : IP55 (Standard), IP65 (On Request)
- PIP Arrangement : 1 PIP / 2 PIP / 3 PIP / Both Side PIPs / 2+2 PIP / 3+3 PIP
- Standard Size :
- Straight Length with 1 PIP : Min 2000 mm | Std 2900 mm | Max 2900 mm
- Straight Length with 2 PIP : Min 2000 mm | Std 2900 mm | Max 2900 mm
- Straight Length with 3 PIP : Min 2900 mm | Std 2900 mm | Max 2900 mm
- Straight Length with Both Side PIPs : Std 2900 mm
- Straight Length with 2+2 PIP : Min 2900 mm | Std 2900 mm | Max 2900 mm
- Straight Length with 3+3 PIP : Min 2900 mm | Std 2900 mm | Max 2900 mm
- PIP Availability : Busbar size 1000A and above
- PIP Spacing : 125 mm
- Phase : 3 Phase
- Pole : 3P / 3P+N / 4P / 5P
- Brand : C&S Electric
- Origin : India
