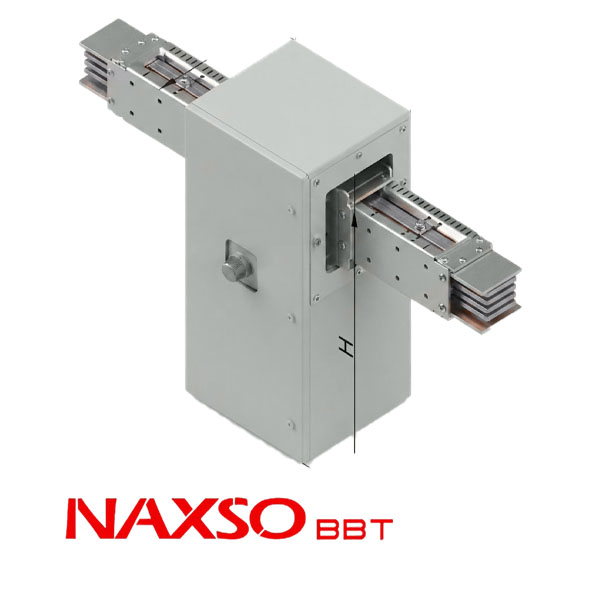

Center Feed Direct ( 630A – 6300A )
BDT 0.00
- Price : POA
- Conductor : Copper / Aluminium
- Current Rate : 630A – 6300A (Copper), 500A – 6300A (Aluminium)
- Voltage Rate : Up to 1000V AC
- Frequency : 50 / 60 Hz
- Protection : IP42 (Standard), IP54 / IP65 (Optional)
- Standard Size :
- 630A : H = 800 mm, D = 400 mm, W = 500 mm
- 800A : H = 800 mm, D = 400 mm, W = 500 mm
- 1000A : H = 800 mm, D = 400 mm, W = 500 mm
- 1600A : H = 1000 mm, D = 400 mm, W = 500 mm
- 2000A : H = 1000 mm, D = 500 mm, W = 500 mm
- 2500A : H = 1000 mm, D = 500 mm, W = 500 mm
- 3200A : H = 1250 mm, D = 500 mm, W = 500 mm
- 4000A : H = 1500 mm, D = 600 mm, W = 600 mm
- 5000A : H = 1500 mm, D = 600 mm, W = 600 mm
- 6300A : H = 1500 mm, D = 650 mm, W = 650 mm
- Insulation Type : Air Insulated (Sandwich Type)
- Connection Type : Center Feed Direct
- Installation : Horizontal / Vertical
- Phase : 3 Phase
- Pole : 3P / 3P+N / 4P / 5P
- Brand : NAXSO
- Origin : Italy
