In Stock

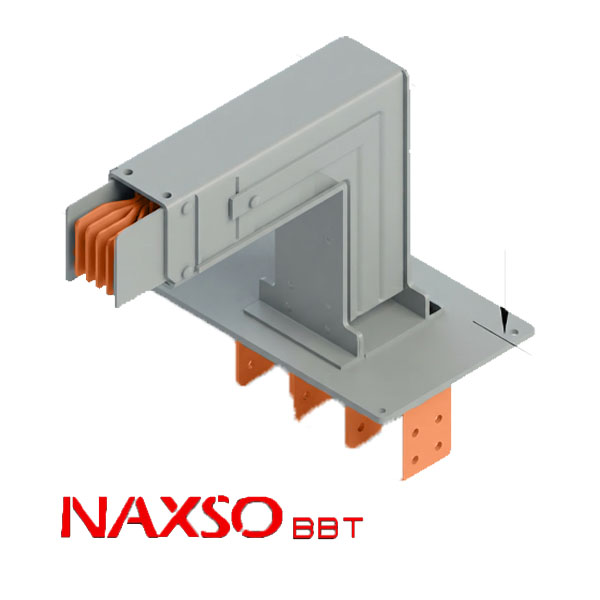

Flanged End With Flat Elbow Busway ( 630A – 6300A )
BDT 0.00
- Price : POA
- Conductor : Copper / Aluminium
- Current Rate : 630A – 6300A (Copper), 500A – 6300A (Aluminium)
- Voltage Rate : Up to 1000V AC
- Frequency : 50 / 60 Hz
- Protection : IP42 (Standard), IP54 / IP65 (Optional)
- Standard Size :
- 630A–1600A : A = 350 mm, B = 350 mm
- 2000A–2500A : A = 400 mm, B = 350 mm
- 3200A–4000A : A = 500 mm, B = 400 mm
- 5000A : A = 500 mm, B = 500 mm
- 6300A : A = 600 mm, B = 600 mm
- Insulation Type : Air Insulated (Sandwich Type)
- Connection Type : Flanged End with Flat Elbow
- Installation : Horizontal / Vertical
- Phase : 3 Phase
- Pole : 3P / 3P+N / 4P / 5P
- Brand : NAXSO
- Origin : Italy
